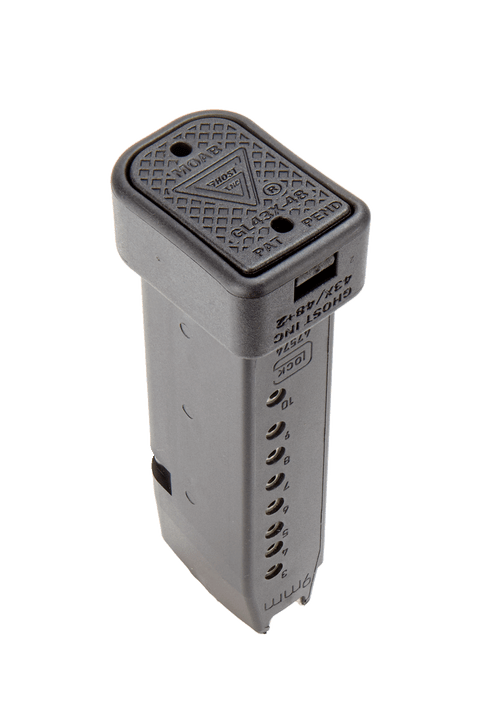

LoViz PLUS 2 MOAB FOR GLOCK 43X & 48- BLACK

LoViz PLUS 2 MOAB FOR GLOCK 43X and 48 ONLY (Mother Of All Baseplates)

ONLY FACTORY GLOCK MAGS

MORE BULLETS MORE LIFE

Features:

• Adds 2 Rounds to 43X/48 Glock's Factory Magazines!
• Extra power magazine spring included!
• Low Profile For Deeper Concealment!
• Positive mag seating!
• Patented Perimeter Ring Secures Extension #11,662,165!
• Superior tough construction!
• Smooth Ergonomic Edges!
• Ghost unconditional lifetime warranty!

Installation Instructions:

The Ghost MOAB magazine extension for Glock factory magazines consists of 3 items 2 of which make up the magazine extension assembly;

1. The Sleeve-the rectangular piece that you may look through-Assembly
2. The MOAB Spring-the coil stainless steel spring that powers the extension-Spring
3. The MOAB Base-the MOAB that inserts into the sleeve-Assembly

Prior to installation of Ghost MOAB magazine extension, you must remove the (1) existing magazine baseplate (2) magazine baseplate insert, (3) the magazine spring and (4) remove the follower from the spring, you will reuse only (4) the follower. Place the unused parts in suitable storage container and label them for possible future use-Caution the contents are under the pressure of the magazine spring, eye protection must be worn when manipulating springs.

Note: Once removed you may want to consider cleaning the magazine body.

1. Slide the Sleeve part number one (1) with the shortest flat side oriented along the rear of the magazine until it can go no further.
2. Attach the spring into the follower you removed from the host magazine. You will notice that the spring is not symmetrical there is a large end (bottom) and a small end (top). This small end snaps into the follower (if it does not completely snap in you may still install the follower partially on the spring after a loading it will seat onto the spring). Now with the follower attached to the spring insert them all into the magazine until you see the follower is at the limit of it’s travel in the magazine. There will be many coils extending below the sleeve.
3. Grip the magazine body firmly so that you can push down on the installed MOAB Sleeve (1) towards the bottom of the magazine. This downward pressure will aid in locking the MOAB Base (3) into the sleeve when you join them.
4. With the MOAB Base (3) use it to capture the large end or bottom of the spring.
5. Push the MOAB Base (3) with the MOAB spring (2) into the MOAB Sleeve on an angle towards the rounded front side(1) until it locks in place-you’re done!
6. To remove reverse the process. To remove the base, you will need to compress the back tab inwards enough to unlock the base.
